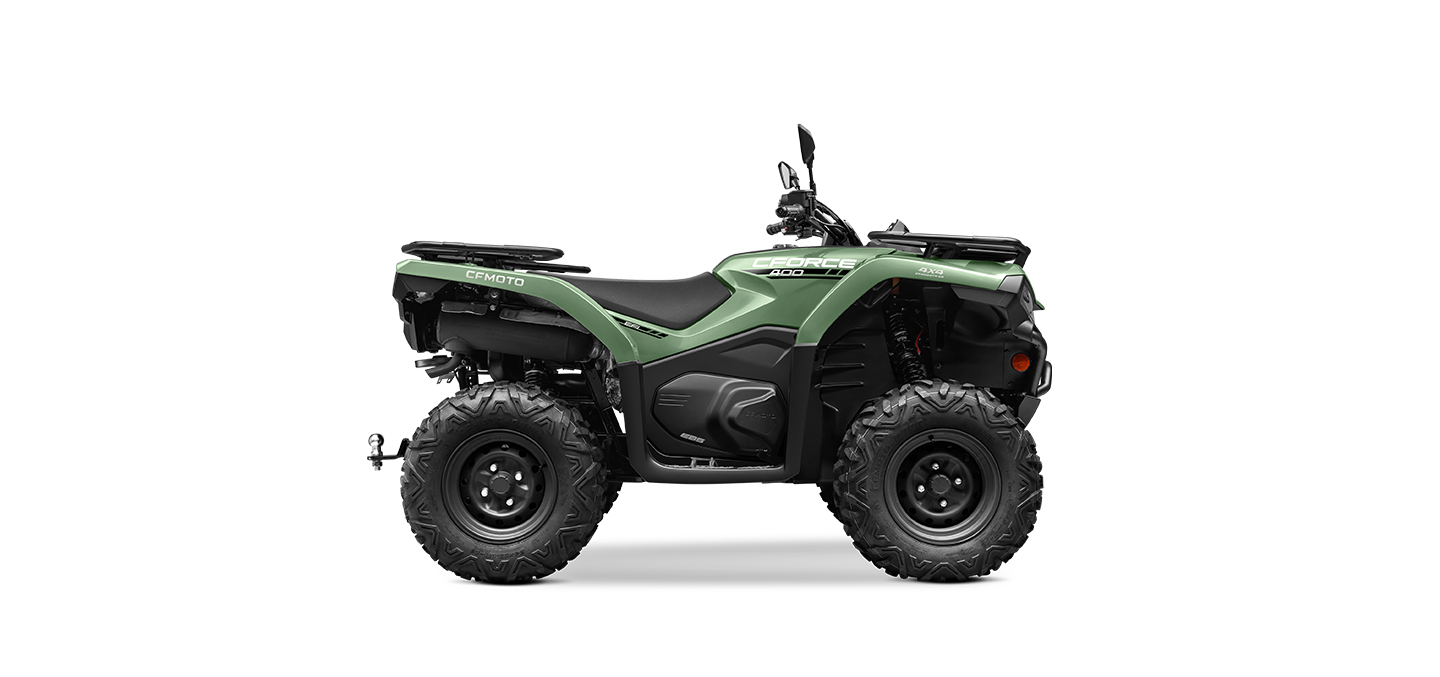

cforce 400

AUSTRALIA’S BEST VALUE ATV
Unbeatable performance and quality at an amazing price. The new-generation CFORCE 400 is next level with loads of improvements all round to make this ATV stronger, lighter, and have more of the things that matter – like less vibration, tighter turning circle and greater comfort.

ENGINE & TRANSMISSION
Engine type: Four-stroke single-cylinder
Displacement: 400cc
Maximum power: 31hp (22.5kW) at 7,250rpm
Maximum torque: 33Nm at 5,500rpm
Fuel system: Bosch EFI
Transmission: CVT with engine braking
Drive: H-L-N-R-Park
4WD: 2WD/4WD with locking front differential
Rear differential: Fixed

SUSPENSION & BRAKES
Suspension: Double A-Arm, independent
Brakes: Hydraulic disc brakes

WHEELS & TYRES
Wheels: 12-inch steel
Tyres: 24-inch 6-ply CST

DIMENSIONS
L x W x H: 2186 x 1125 x 1150mm
Wheelbase: 1260mm
Ground clearance: 250mm
Wet weight: 336kg

LOAD
Towing capacity: 612kg
Carrying capacity: 30kg front/60kg rear
Payload capacity: 240kg
Person: One
Fuel capacity: 17lt

FEATURES
Colour: Hunter Green
Warranty: Two years
Tow pack, horn, lights and mirrors: Yes
